BCD to 7-Segment Display Decoder

The animation counts through all 16 values from 0 to F (hexadecimal). A BCD decoder only needs the digits 0 to 9.

A BCD to 7-segment decoder is a combinational circuit that converts a 4-bit Binary Coded Decimal (BCD) input into the appropriate output signals to drive a 7-segment display device for displaying decimal digits 0 through 9. The decoder takes four input bits (A, B, C, D) representing BCD numbers and generates seven output signals (a, b, c, d, e, f, g) to control the individual segments of a 7-segment display. A is the most significant bit and D is the least significant bit, so the weights of A, B, C and D are 8, 4, 2 and 1 (for example, ABCD = 0101 is the digit 5).

Understanding 7-Segment Display Structure

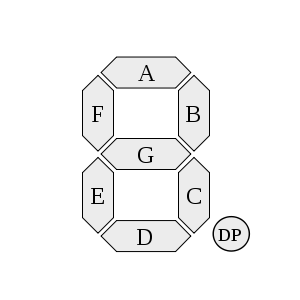

A 7-segment display consists of seven individual LED segments arranged in a figure-8 pattern, labeled as a, b, c, d, e, f, and g in a clockwise sequence starting from the top horizontal segment. Each segment can be individually controlled to display decimal digits 0-9. An optional eighth segment, the decimal point (DP), is used for displaying fractional numbers.

Key Features of 7-Segment Displays:

• Seven segments labeled a, b, c, d, e, f, g (lowercase for segment identification). The figure above labels the segments with capital letters; in this experiment they are written in lowercase so that they are not confused with the inputs.
• BCD inputs labeled A, B, C, D (uppercase for binary input signals)
• Common-cathode or common-anode configurations available
• Individual segment control enables digit formation

Display Configuration Types

Common-Cathode Display: All cathodes of the seven LEDs are connected together and brought out as a single pin. To light a segment, the corresponding anode pin must be driven HIGH (logic 1). This experiment uses common-cathode configuration.

Common-Anode Display: All anodes of the seven LEDs are connected together. To light a segment, the corresponding cathode pin must be driven LOW (logic 0).

BCD to 7-Segment Truth Table

The decoder converts 4-bit BCD inputs (A, B, C, D) to 7-segment outputs (a, b, c, d, e, f, g). For common-cathode displays, a segment lights when its corresponding output is HIGH (1).

A	B	C	D	a	b	c	d	e	f	g	Digit
0	0	0	0	1	1	1	1	1	1	0	0
0	0	0	1	0	1	1	0	0	0	0	1
0	0	1	0	1	1	0	1	1	0	1	2
0	0	1	1	1	1	1	1	0	0	1	3
0	1	0	0	0	1	1	0	0	1	1	4
0	1	0	1	1	0	1	1	0	1	1	5
0	1	1	0	1	0	1	1	1	1	1	6
0	1	1	1	1	1	1	0	0	0	0	7
1	0	0	0	1	1	1	1	1	1	1	8
1	0	0	1	1	1	1	1	0	1	1	9

Segment Pattern Analysis

For better understanding, here's which segments remain OFF for each digit:

Digit	OFF Segments	Active Segments
0	g	a,b,c,d,e,f
1	a,d,e,f,g	b,c
2	c,f	a,b,d,e,g
3	e,f	a,b,c,d,g
4	a,d,e	b,c,f,g
5	b,e	a,c,d,f,g
6	b	a,c,d,e,f,g
7	d,e,f,g	a,b,c
8	none	a,b,c,d,e,f,g
9	e	a,b,c,d,f,g

Logic Equations

From the truth table, each segment is 1 for a set of BCD codes. Writing the codes as decimal numbers (minterms), with A as the most significant bit, the segment functions are:

• Segment a: a = Σm(0, 2, 3, 5, 6, 7, 8, 9)
• Segment b: b = Σm(0, 1, 2, 3, 4, 7, 8, 9)
• Segment c: c = Σm(0, 1, 3, 4, 5, 6, 7, 8, 9)
• Segment d: d = Σm(0, 2, 3, 5, 6, 8, 9)
• Segment e: e = Σm(0, 2, 6, 8)
• Segment f: f = Σm(0, 4, 5, 6, 8, 9)
• Segment g: g = Σm(2, 3, 4, 5, 6, 8, 9)

The codes 1010 to 1111 (10 to 15) are not valid BCD digits and never occur, so the segment values for them are don't cares. Using these don't cares in K-maps gives simpler equations:

Segment a: a = A + C + BD + B'D'

Segment b: b = B' + C'D' + CD

Segment c: c = B + C' + D

Segment d: d = A + B'D' + B'C + CD' + BC'D

Segment e: e = B'D' + CD'

Segment f: f = A + BC' + BD' + C'D'

Segment g: g = A + BC' + B'C + CD'

Here ' denotes the complement (NOT), a product is an AND and + is an OR. Note that B'D' + BD is the XNOR of B and D, and C'D' + CD is the XNOR of C and D, so these terms can be built with a single XNOR gate. Different choices for the don't cares give different, equally valid circuits: they all produce the same segment patterns for the digits 0 to 9, and differ only for the invalid codes.

Key Features

• Input: 4-bit BCD code (A, B, C, D) representing decimal digits 0-9
• Output: 7 control signals (a, b, c, d, e, f, g) for 7-segment display
• Common-cathode compatibility: Output HIGH (1) lights the corresponding segment
• Decimal display: Converts binary representation to human-readable decimal digits
• Combinational logic: Output depends only on current input state

Applications

• Digital clocks and timers: Displaying time in hours, minutes, and seconds
• Electronic calculators: Showing numerical results and intermediate calculations
• Digital voltmeters and multimeters: Displaying measured values
• Microwave ovens and appliances: Showing cooking time and settings
• Electronic scoreboards: Displaying scores in sports and games
• Frequency counters: Showing measured frequency values
• Digital thermometers: Displaying temperature readings

Decoder Implementation Methods

Direct Logic Implementation

The most straightforward approach uses individual logic gates to implement the Boolean equations for each segment. This method requires:

• Multiple AND, OR, and NOT gates
• Seven logic circuits (one per segment), which can share NOT gates and common product terms
• Direct mapping from truth table to hardware

ROM-Based Implementation

A Read-Only Memory (ROM) approach stores the truth table directly:

• 4-bit address inputs (A, B, C, D)
• 7-bit data outputs (a, b, c, d, e, f, g)
• Compact implementation for small truth tables
• Easy modification for custom display patterns

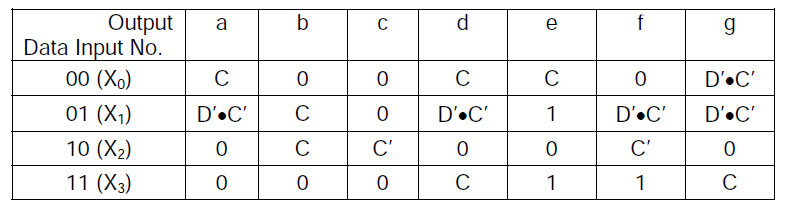

Multiplexer-Based Implementation

Using multiplexers to select appropriate output patterns:

• Input selects which digit pattern to display
• Pre-stored patterns for each BCD input
• Efficient for multiple display applications
