Practice

The Practice page has two tasks, one for each tab: SISO Shift Register and PIPO Register. In both tasks the input bits, the clock Clk and the output bits are already on the circuit board, and you build the register between them from D flip-flops. There is no demo page for this experiment.

General instructions

• Click on D Flip-Flop in the Components panel to add a flip-flop to the board, drag it to move it, and connect components by dragging from one endpoint (the dots) to another. A wire can be dragged from an output point to an input point or the other way round. An output point can drive several inputs: the clock Clk has to be connected to all four flip-flops. An input point takes one wire only.
• The D flip-flop has the input points D (data) and Clk (clock, marked with a triangle) and the output points Q (upper) and Q' (lower). Q is the one used in these tasks.
• To delete a wire or a component, right click on it and select Delete.
• Click on an input bit to toggle it between 1 and 0. The clock Clk is a separate input: its value changes by itself while the simulation runs.
• The D flip-flop is positive-edge triggered: it copies D to Q when Clk goes from 0 to 1, and keeps its value otherwise. Every flip-flop starts with Q = 1.
• Click on Simulate to start the clock Clk (it rises every 2 seconds). The output bits are shown with their starting value 1 at once and change at every rising edge of the clock. The button now reads Stop: click on it to stop the clock. Reset stops the clock too, and so does a change of tab. The Submit button works only when the clock is stopped.
• Click on Submit to check the circuit. A "Success" or "Fail" message and a table with the expected and the observed output values are shown. The circuit must be completely connected, otherwise the component that is not connected properly is highlighted.

Task 1: 4-bit Serial Input Serial Output (SISO) Shift Register

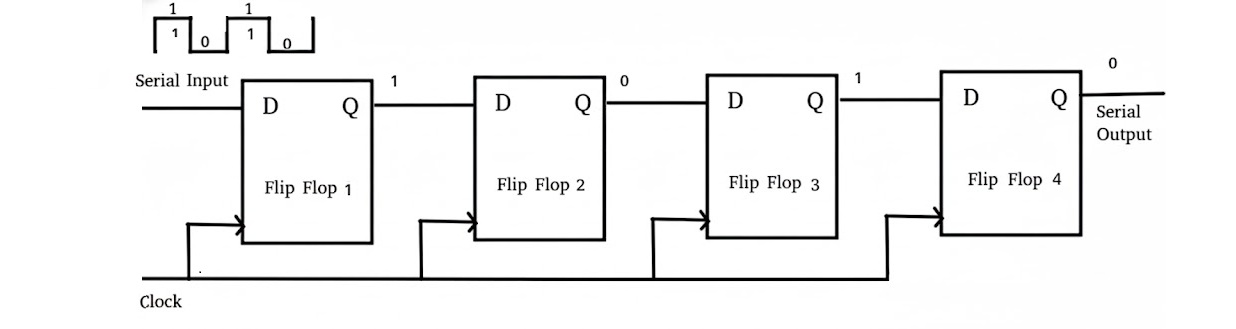

Figure 1: 4-bit SISO shift register: 4 D flip-flops connected in series with a common clock input. Reference: Theory section

Components required: 4 D flip-flops. The input bits D (serial input) and Clk (clock) and the output bits Q1, Q2, Q3 and Q4 are on the board; Q1 to Q4 are the outputs of the four stages, from the one that receives D to the last one.

Circuit connections:

1. Drag the first D Flip-Flop and connect its Clk input point to the Clk input bit and its D input point to the D input bit. Connect its Q output point to the Q1 output bit.
2. Drag the second D Flip-Flop and connect its Clk input point to the Clk input bit and its D input point to the Q output point of the first D Flip-Flop. Connect its Q output point to the Q2 output bit.
3. Drag the third D Flip-Flop and connect its Clk input point to the Clk input bit and its D input point to the Q output point of the second D Flip-Flop. Connect its Q output point to the Q3 output bit.
4. Drag the fourth D Flip-Flop and connect its Clk input point to the Clk input bit and its D input point to the Q output point of the third D Flip-Flop. Connect its Q output point to the Q4 output bit.
5. Set the value of D (click on it to toggle), click on Simulate and watch the outputs Q1, Q2, Q3 and Q4 change at the rising edges of Clk. Change D between the clock pulses to send different bits through the register.

Expected behaviour (checked when you click on "Submit", starting from Q1 = Q2 = Q3 = Q4 = 1). A row with Clk = 1 applies one complete clock pulse with the D of the row:

Observations

• When Clk is 0, or does not change, all output bits remain unchanged. When Clk goes from 0 to 1 (positive edge), the data moves through the register by one position.
• Data flow: Q1 shows the most recent input, Q2 shows the data delayed by 1 clock pulse, Q3 delayed by 2 clock pulses and Q4 delayed by 3 clock pulses.
• A bit entered at D appears at Q4 after 4 clock pulses.
• If the circuit has been made as described above, a "Success" message is displayed upon clicking "Submit".

Task 2: 4-bit Parallel Input Parallel Output (PIPO) Register

Figure 2: 4-bit PIPO register: 4 D flip-flops with parallel inputs P1 to P4, parallel outputs Q1 to Q4 and a common clock. Reference: Theory section

Components required: 4 D flip-flops. The input bits P4, P3, P2, P1 and Clk and the output bits Q4, Q3, Q2, Q1 are on the board (the highest bit is on the left).

Circuit connections:

1. Drag the first D Flip-Flop and connect its Clk input point to the Clk input bit and its D input point to the P1 input bit. Connect its Q output point to the Q1 output bit.
2. Drag the second D Flip-Flop and connect its Clk input point to the Clk input bit and its D input point to the P2 input bit. Connect its Q output point to the Q2 output bit.
3. Drag the third D Flip-Flop and connect its Clk input point to the Clk input bit and its D input point to the P3 input bit. Connect its Q output point to the Q3 output bit.
4. Drag the fourth D Flip-Flop and connect its Clk input point to the Clk input bit and its D input point to the P4 input bit. Connect its Q output point to the Q4 output bit.
5. Set the values of P1, P2, P3 and P4 (click on each to toggle), click on Simulate and watch the outputs Q1 to Q4 take the values of the inputs at the rising edges of Clk.

Expected behaviour (checked when you click on "Submit", starting from Q = 1111). A row with Clk = 1 applies one complete clock pulse:

Observations

• When Clk is 0, or does not change, the output bits Q1 to Q4 remain unchanged, whatever the inputs P1 to P4 are. When Clk goes from 0 to 1 (positive edge), all the parallel inputs are loaded into their flip-flops at the same time.
• All 4 bits are stored in a single clock cycle: Q1 = P1, Q2 = P2, Q3 = P3 and Q4 = P4.
• If the circuit has been made as described above, a "Success" message is displayed upon clicking "Submit".

Troubleshooting

• "Highlighted component not connected properly" or "D of D Flip Flop not connected properly": the D input and the Clk input of every flip-flop have to be connected, and every output bit has to be driven by a flip-flop.
• Submit does not respond: Submit is disabled while the clock runs. Click on "Stop" first.
• The outputs do not change in the simulation: they change only at the rising edge of Clk, that is, once every 2 seconds, and only if Clk is connected to the flip-flops.
• The fail message appears in the SISO task: check that the output points Q of the flip-flops are connected to the output bits in the right order (Q1 to the first flip-flop, which receives D) and that the D input of each flip-flop comes from the Q of the previous one.
